140W 12GHz-18GHz Ku-Band Portable Starlink Interconnection Detection Device

Name: 140W 12GHz18GHz KuBand Portable Starlink Interconnection Detection Device
Brand: None (Customizable)
Price: 1000 USD

Wholesale 140W 12GHz-18GHz Ku-Band Portable Starlink Interconnection Detection Device from china suppliers

Supply Ability : 2 unit /month

RAM : 2GB DDR4

ROM : 64GB Emmc

Certification : ISO，CE

Power Supply : Powered by Internal Battery

Model Number : Hobit XL

Working frequency : Ku Band (Approximately 14-14.5 GHz)

Receiver Sensitivity : ≥ -97 dBm

MOQ : 1

Delivery Time : 14 days

Weight : ≤ 4.6 kg (including internal and external power banks)

Packing : Durable case and box

Waterproof Rating : Non-waterproof

Payment Terms : L/C,T/T

Computing Unit : Fpga Rfsoc-67dr

LNB : Ku-Band to L-Band Frequency Conversion, Gain: >68

Debug Interface : Wired Gigabit Ethernet Port (RJ45)

Price : 1000~999999USD

CPU : Arm Cortex-A53, 1.5GHz

Antenna : Frequency Range 9.84-15 GHz

Gain : 20 Db

Brand Name : None (Customizable)

Channel : >4CH

Place of Origin : China

Dimension : 470x320x500mm

Packaging Details : durable case and box

Screen : 3.2 ''lcd

Contact Now

Production introduction

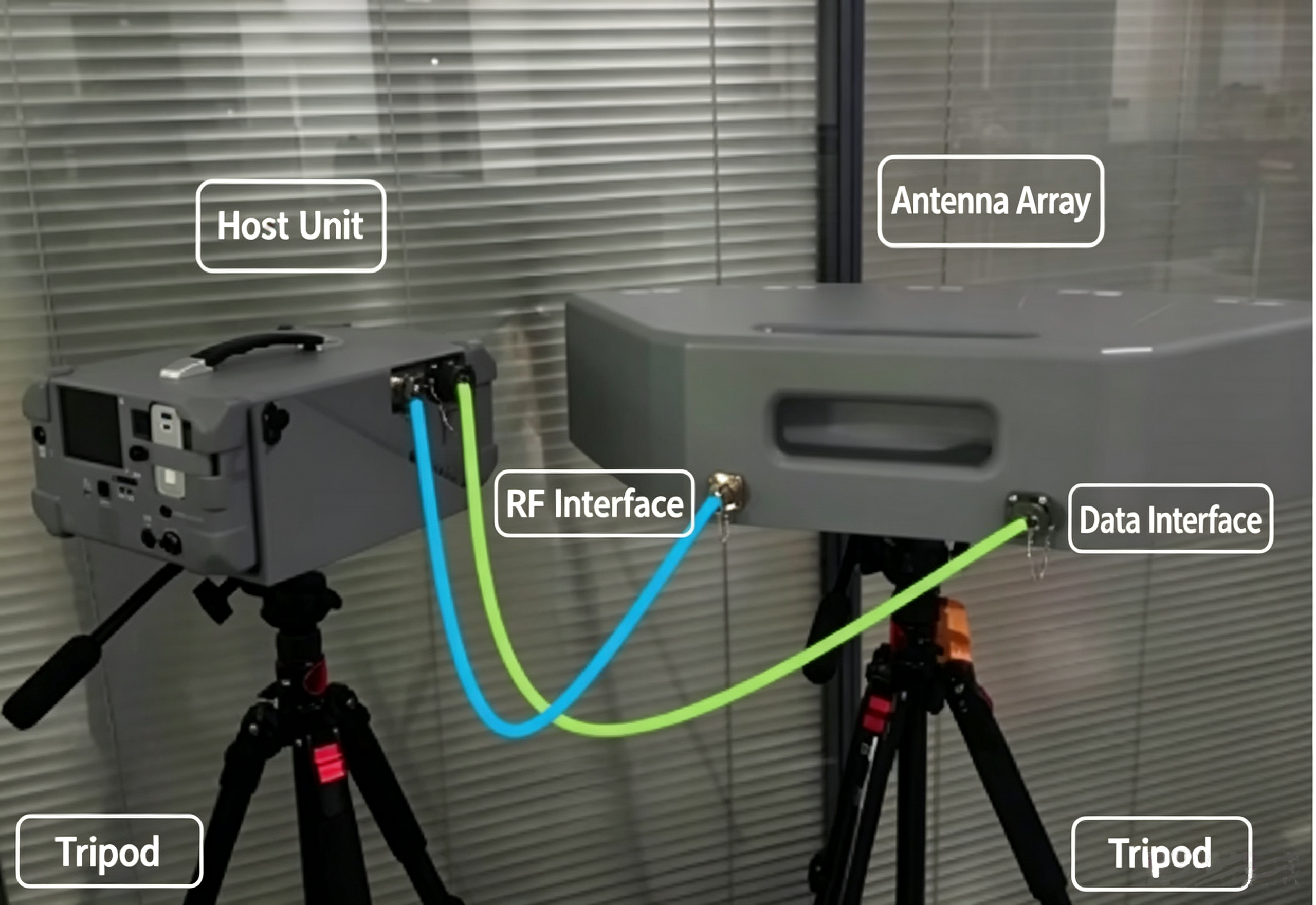

For the signal transmission, identification and processing technologies of Ku-band satellites, the system can realize full-domain scanning and accurate acquisition of the target satellite signals by virtue of a dedicated receiving antenna, a low-noise block downconverter (LNB) and a digital signal processing unit. It then rapidly locks onto the target Ku-frequency transmission signals through signal feature extraction, beacon frequency identification and other means, and achieves continuous dynamic tracking of the motion trajectory of the target satellite (or user terminal), thus ensuring the continuity and reliability of signal reception.

This specification specifies the core requirements for the XL-UP signal detection including its functions, performance, interfaces and operating environment, serving as the basis for product research and development, testing, production, procurement and customer acceptance.

Production specifiaction

a) Satellite Detection

Supports parallel detection of 8-band signals (detection response time: ≤250 ms);

supports antenna array scanning and detection.

Supports long-distance unobstructed satellite terminal detection over 10 km.

b) Signal Recording and Playback

Supports real-time recording and playback of detected signals; once a signal is detected, the original data signals are recorded, played back and stored (response time is consistent with the detection response time, ≤250 ms), with a continuous recording and playback duration of over 1 s.

c) Touch Screen Display

3.2-inch LCD screen is equipped, supporting the control of device detection and recording/playback, and displaying detection information.

d) Voice Announcement

Integrated with a TTS voice broadcast chip, supporting human voice broadcast of detection results; supports wireless broadcast via Bluetooth earphone connection.

e) Wired Communication

1 Gigabit Ethernet port, supporting TCP/IP, UDP, ICMP and other protocols

f) Wireless Transmission

Supports WIFI connection with devices and 4G module transmission.

g) Device Management

Web Management: Graphical interface, configuration backup/restore;CLI Management: Command line access (serial port/Telnet/SSH);Remote Management: Remote config, firmware upgrade, fault diagnosis (4G module).
